適用于降主動脈損傷修復術：

當疑診降主動脈破裂大出血時要抓緊時間進行手術探查。
有時即便在大量出血，甚至心搏驟停情況下，
進行手術搶救也有存活的病例報道。

適應症:
腹主動脈瘤
血管瘤常出現於腹部主動脈
治療方法
剖腹手術
利用血管夾暫時截斷血流，然後將血管瘤切開，
縫接上人工血管以取代已擴張成血管瘤的一段主動脈。
手術的死亡率約為百分之3至5。
手術修補已被證實是永久兼有效的治療方法。

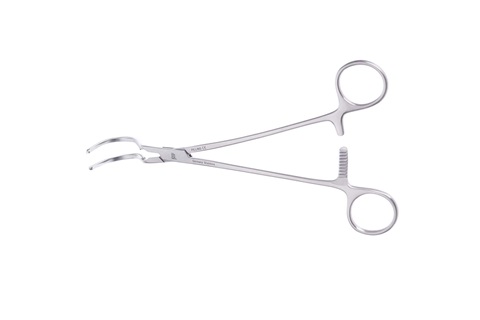

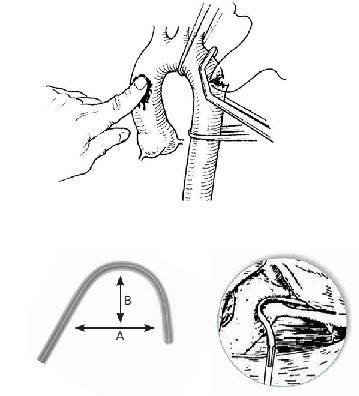

DeBakey®-type Jaws very acutely curved. Width at
(A) 1-1/4" (3.5 cm), depth at (B) 1" (2.5 cm).

353655 Model No. 1, 9-5/8" (24.5 cm)
353656 Model No. 2, 9-1/4" (23.5 cm)

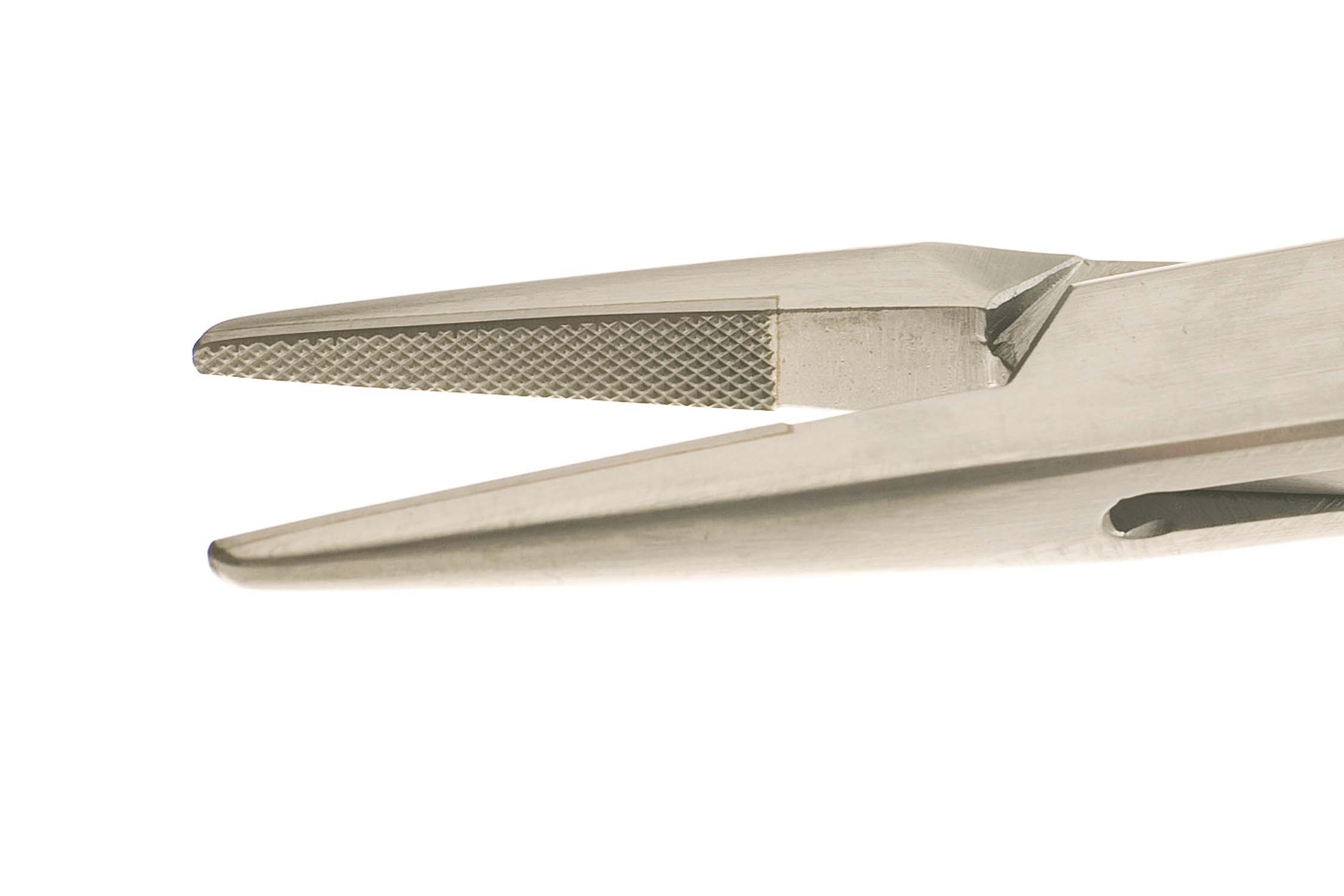

Carefully designed with light, short Tungsten Carbide jaws. Constructed in weight proportional to total length. May be purchased individually or as matched
set of four.

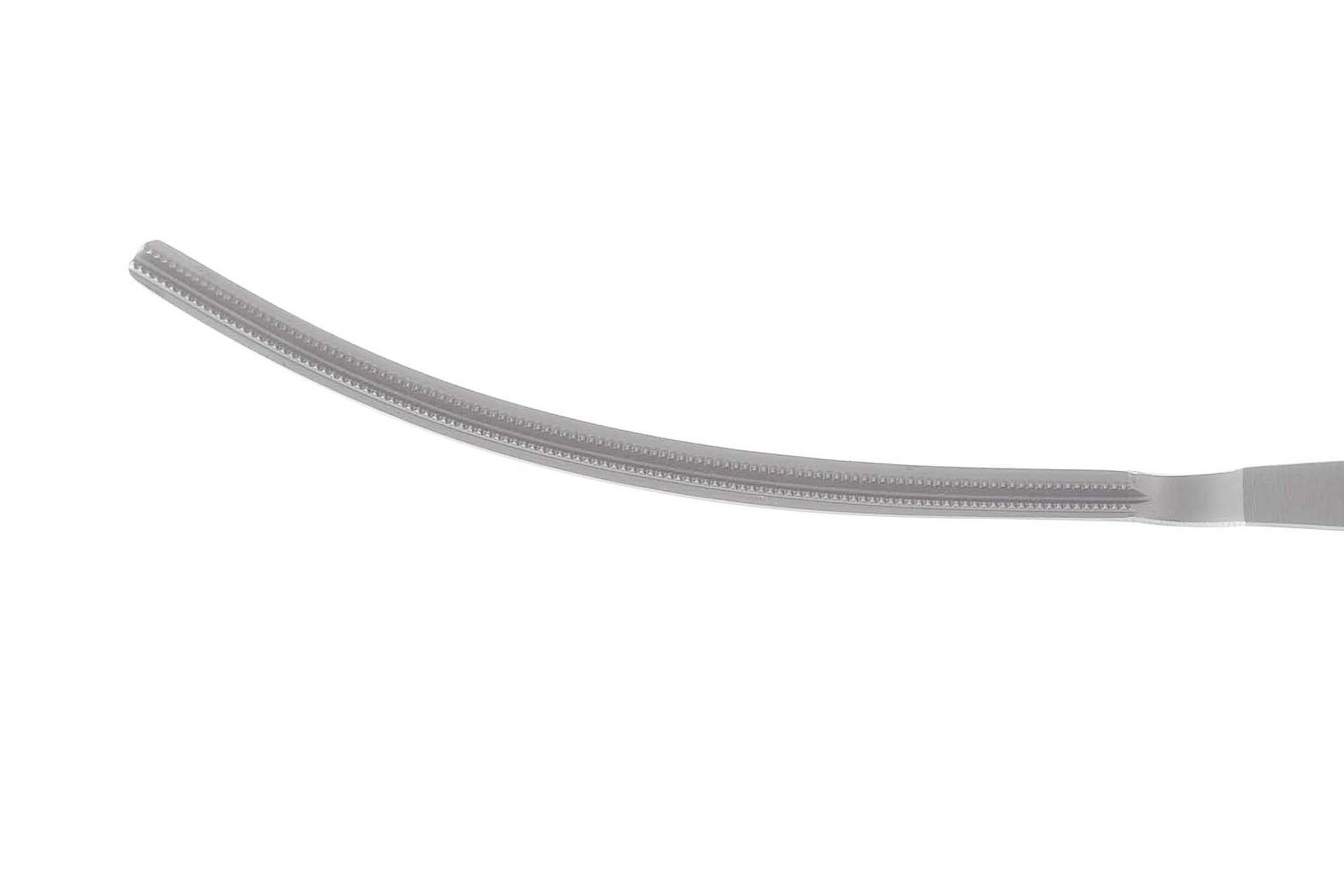

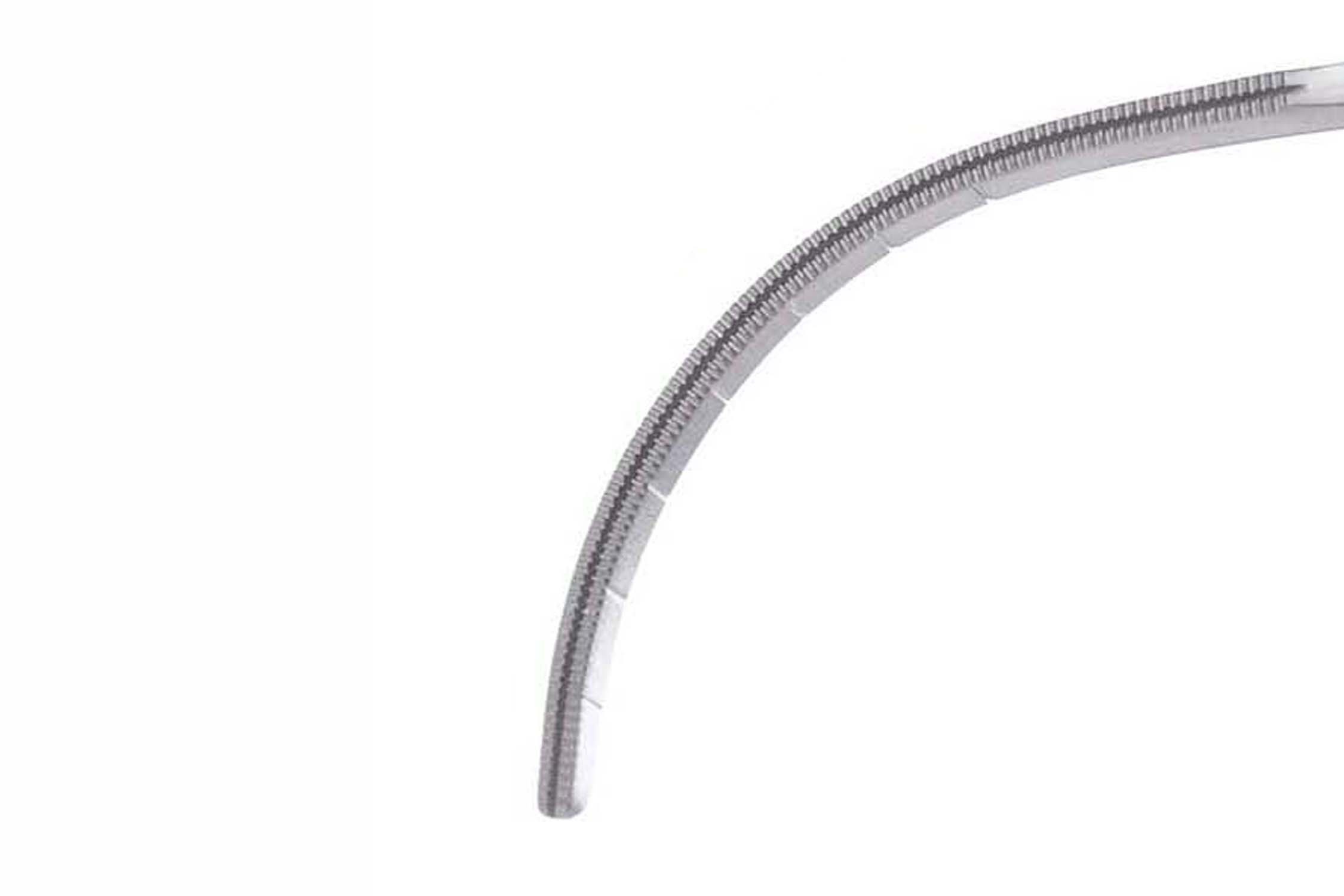

“德貝克齒”（Debakey)，
這種齒形特別圓潤且精細，血管與脆弱組織被夾持而受擠壓時的損傷很小，所以能夠保證手術安全與質量。

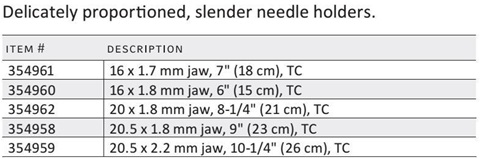

持針鉗分粗針、細針兩種，粗針多應用於普外科、婦產科等；細針多應用於心血管外科、顯微外科等。

Useful for temporarily occluding the femoral, popliteal, subclavian and carotid arteries during performances of thromboend arterectomy or application of by-pass
procedures. Relatively lightweight Cooley Jaws.

可用於在血栓或應用旁路的表現暫時阻斷股動脈，膕窩，鎖骨下動脈和頸動脈程序。

止血鉗：被醫生稱為血管鉗，主要用於鉗夾有出血點的組織器官以止血。
它的唇頭齒有利於組織器官的夾持，大部分唇頭齒為橫齒（半齒或全齒），極少部分為直齒或其它形式。在實際手術中，止血鉗不僅僅是為瞭止血，有時是為瞭作牽拉或固定。
主要可分為直/彎止血鉗、有鉤止血鉗、蚊式止血鉗三種。

356025 Angled, 7-1/2" (19 cm)
356031 Curved, 6-3/4" (17 cm)

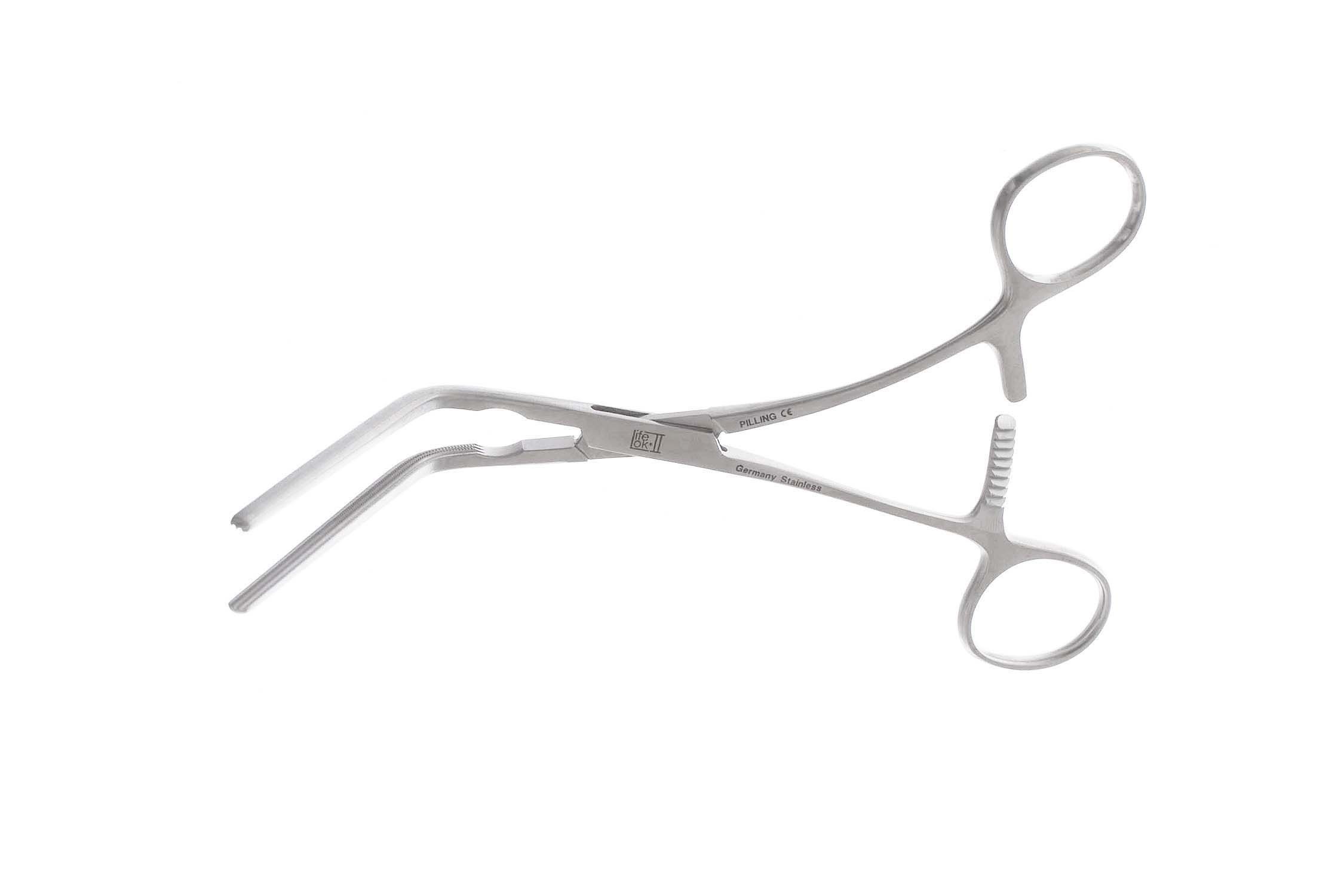

2 x 3 DeBakey ® -type Jaws.
353617 Jaws 2-1/2" (6.5 cm) from angle, 8-1/8" (20.5 cm)
353618 Jaws 2-1/2" (6.5 cm) from angle, 9-1/2" (24 cm)
353619 Jaws 3-3/4" (9.5 cm) from angle, 9-1/2" (24 cm)

DeBakey ® -type Jaws. For occlusion of the neck of sacciform aneurysms of the aorta in tangential excision of such aneurysms and subsequent aortography. Also
for temporary occlusion of the aorta in resection of fusiform aneurysms of the aorta and restoration of continuity by aortic grafts.

353600 3-3/4" (9.5 cm) jaw, 1 x 9 ratchets, 10-3/8" (26.5 cm)
353602 4" (10 cm) jaw, 1 x 9 ratchets, 10-7/8" (27.5 cm)
353605 4-7/8" (12.5 cm) jaw, 1 x 11 ratchets, 12-1/2" (32 cm)
353607 5-3/4" (14.5 cm) jaw, 1 x 11 ratchets,13-1/4" (33.5 cm)

主動脈夾層動脈瘤-type爪。對於頸部的閉塞主動脈在削痂囊形的動脈瘤,這種動脈瘤和主動脈造影以後。還為主動脈手術中暫時阻斷主動脈和恢復的梭形動脈瘤主動脈移植物的連續性。

These matched instruments are useful in a wide variety of situations but were originally designed to temporarily occlude the iliac artery just distal to the aorta in resection of aneurysms of the abdominal aorta involving bifurcation.

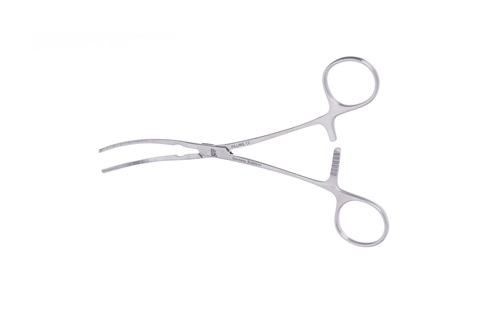

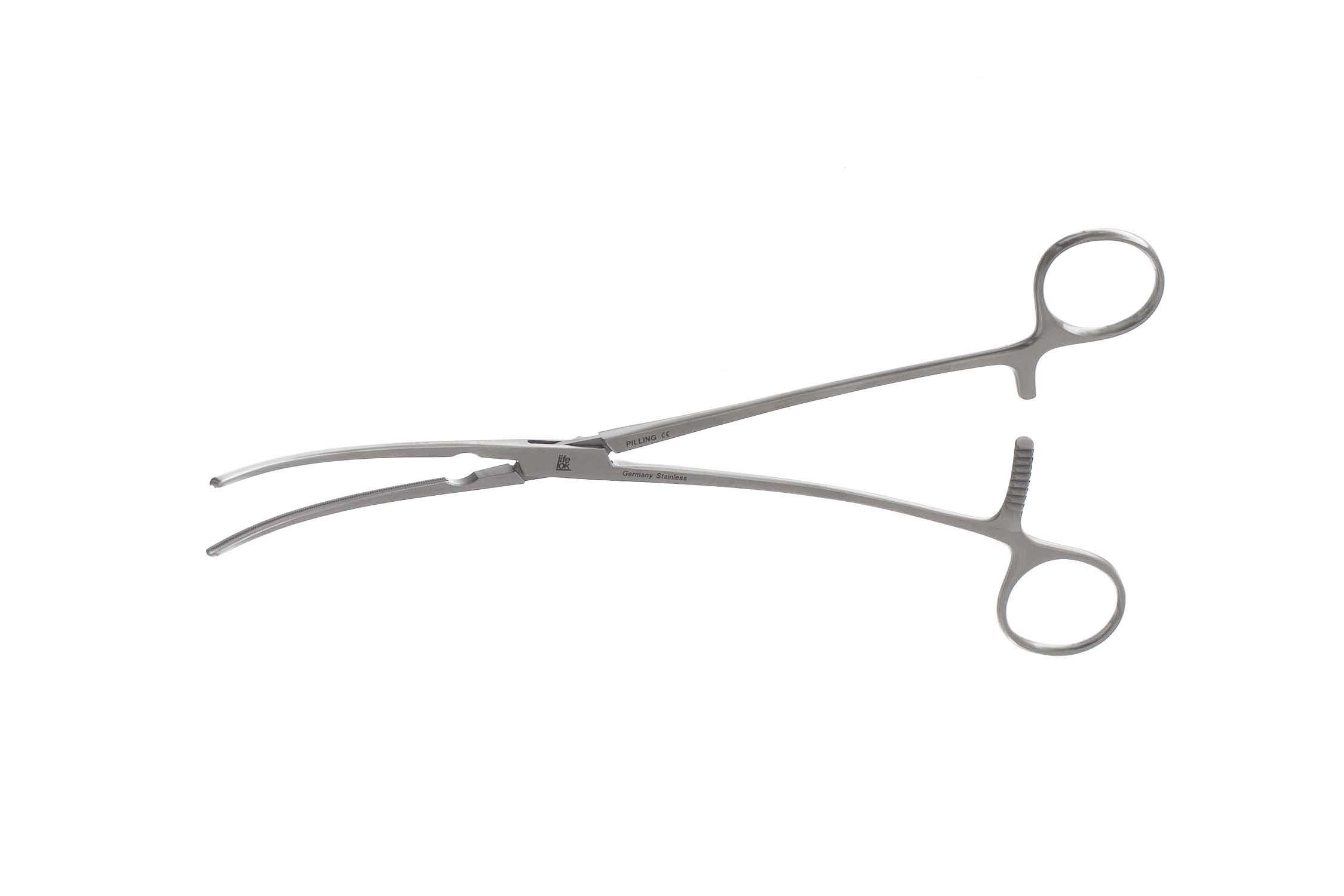

DEBAKEY ® CURVED CLAMPS

353630 Acutely curved, 1-1/4" (3.5 cm) jaw, spring handle, 1 x 11 ratchets, 9-5/8" (24.5 cm)
353632 Medium curved, Bahnson type, 1-1/4" (3 cm) jaw, spring handle, 1 x 9 ratchets, 10-1/8" (25.5 cm)
353631 Slightly curved, Bahnson type, 1-1/4" (3 cm) jaw, spring handle, 1 x 9 ratchets, 10-3/8" (26 cm)
353635 Extra-large, acutely curved, 2-1/2" (6.5 cm) jaw, 1 x 11 ratchets, 10-3/8" (26 cm)

這些儀器是符合在各種有用的情況，但最初設計是暫時用為閉塞髂動脈剛好在遠側的主動脈切除腹主動脈分叉涉及的動脈瘤。

A complete line of stainless steel, reusable heparin cannulae. A selection of sizes, shapes and lengths provides for a variety of uses in flushing, irrigation and
injection.
Applications include peripheral vascular, cardiac, general, orthopedic, urology and neuro surgery.

完整的不銹鋼，可重複使用的肝素套管系列。精選的尺寸，形狀和長度提供了用於在清洗，沖洗和注射的各種用途。
應用包括周圍血管，心臟，一般外科，骨科，泌尿科和神經外科手術。

351560 Stoney Heparin Injector 1-7/8" (4.5 cm)
351573 Zanger Heparin Cannula, malleable, 4 mm tip, 2-1/2" (6.5 cm)
351574 Horsely Heparin Cannula, 2-3/8" (6 cm)
351575 DeBakey ® Heparin Cannula, malleable, 3 mm tip, 2-1/2" (6.5 cm)
351576 DeBakey ® Heparin Cannula, malleable, 3.7 mm tip, 2-7/8" (7.5 cm)
351577 DeBakey ® Heparin Cannula, malleable, 4 mm tip, 6" (15 cm)
351578 23 gauge tip, 2-1/8" (5.5 cm)
351586 Garrett Heparin Injector, malleable, 5/16" (8 mm) tip, working length 3" (7.5 cm)
351587 Garrett Heparin Injector, malleable, 1/2" (12 mm) tip, working length 3" (7.5 cm)
351593 Samson Heparin Injector, malleable, small 7 mm tip, 3-3/8" (8.5 cm)
351594 Samson Heparin Injector, malleable, medium 9 mm tip, 3-3/8" (8.5 cm)
